12V,24V,48V 2.2kw Electric Brushless Motor Internal Controller

12V,24V,48V 2.2kw Brushless motor ,internal controller

A 12V, 24V, 48V 2.2kW brushless motor refers to an electric motor that operates on different voltage options (12 volts, 24 volts, or 48 volts) and has a power rating of 2.2 kilowatts (kW). Brushless motors are known for their high efficiency, durability, and maintenance-free operation. They are used in various applications, including electric vehicles, industrial machinery, robotics, and more.

Here are some key features and considerations regarding a 12V, 24V, 48V 2.2kW brushless motor:

1. Voltage Options: The motor is available in three voltage options: 12 volts, 24 volts, and 48 volts. These voltage options provide flexibility in choosing the appropriate motor for different electrical systems or applications.

2. Brushless Design: Unlike brushed motors that use brushes and a commutator for operation, brushless motors utilize electronic commutation. This design eliminates the need for brushes, resulting in reduced maintenance requirements, improved efficiency, and longer lifespan.

3. Power Rating: The 2.2kW power rating indicates the motor's electrical power output. It determines the motor's capability to deliver torque and rotational speed, making it suitable for applications that require higher power requirements.

4. High Efficiency: Brushless motors are known for their high efficiency, which means they can convert a larger portion of electrical energy into mechanical power. This results in reduced energy consumption and improved overall system efficiency.

5. Compact and Lightweight: Brushless motors are often designed to be compact and lightweight, making them suitable for applications where space and weight constraints are important factors.

6. Speed and Torque Control: Brushless motors offer precise speed and torque control, allowing for precise positioning and control in various applications. This makes them suitable for applications that require accurate and dynamic motor control.

7. Motor Controller Compatibility: Brushless motors require a motor controller or drive to operate optimally. The motor controller provides the necessary control signals and power supply to the motor. It is important to ensure compatibility between the motor and the motor controller to achieve proper operation.

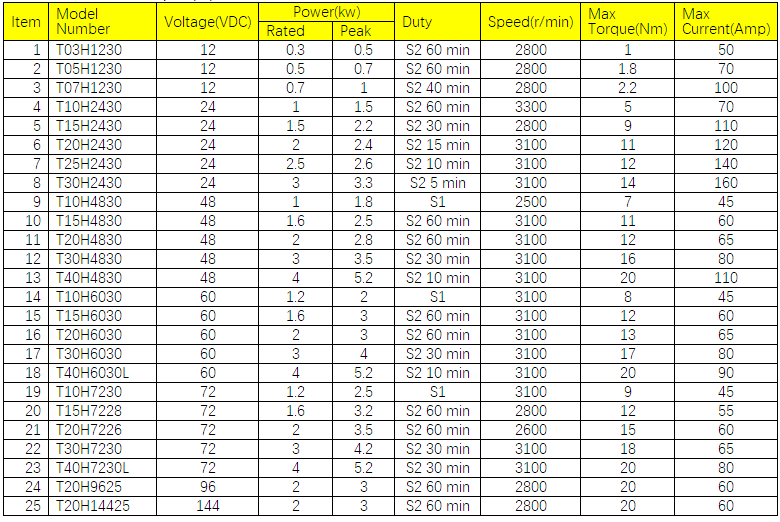

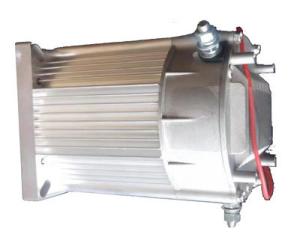

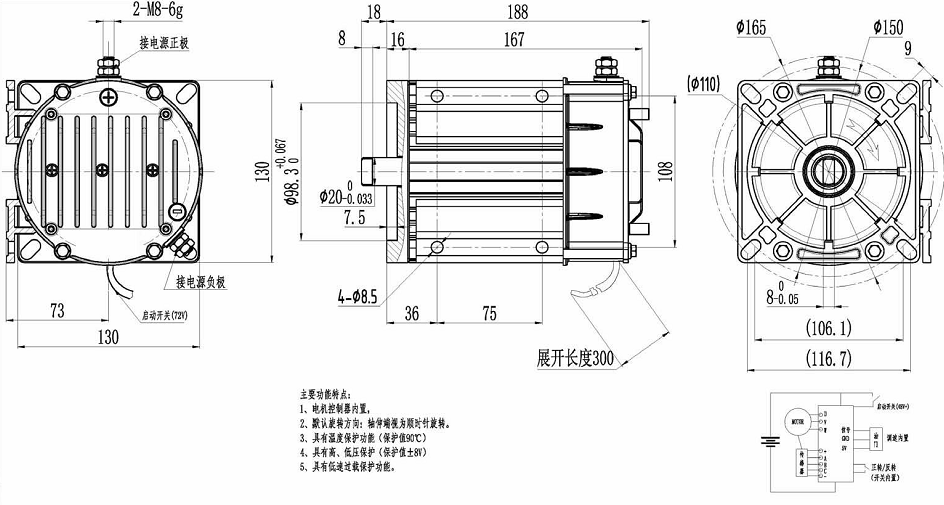

12V,24V,48V 2.2kw Electric Brushless Motor Internal Controller Images
