BME Series AC DC Motor Hydraulic Orbital Motor High Torque At Low Speeds

BME Series Orbital Motor

The BME series orbital motor is a type of hydraulic motor manufactured by the company Danfoss. It is a well-known and widely used motor in various hydraulic systems and applications. The BME series is recognized for its high efficiency, durability, and reliability.

Here are some key features and characteristics of the BME series orbital motor:

1. Orbital Design: The BME series motor follows an orbital design, also known as an orbit motor or gerotor motor. It utilizes an internal gear set called gerotor to convert hydraulic pressure into rotational mechanical power.

2. High Efficiency: The BME series motor is designed to provide high efficiency, meaning it can convert a significant portion of the hydraulic energy into useful mechanical work. This results in reduced energy consumption and improved overall system efficiency.

3. Wide Range of Displacements: The BME series motors are available in a range of displacements, allowing for flexibility in matching the motor's speed and torque characteristics to the specific requirements of the application. Different displacements provide varying speeds and torque outputs.

4. Compact and Lightweight: The BME series motors are designed to be compact and lightweight, making them suitable for applications where space and weight constraints are important factors.

5. High Torque at Low Speeds: The BME motors are known for delivering high torque even at low speeds, making them suitable for applications that require high starting torque or precise control at low speeds.

6. Wide Range of Applications: The BME series motors find applications in various industries, including agriculture, construction, material handling, industrial machinery, and more. They are commonly used in hydraulic systems for driving winches, conveyors, augers, feeders, and other equipment.

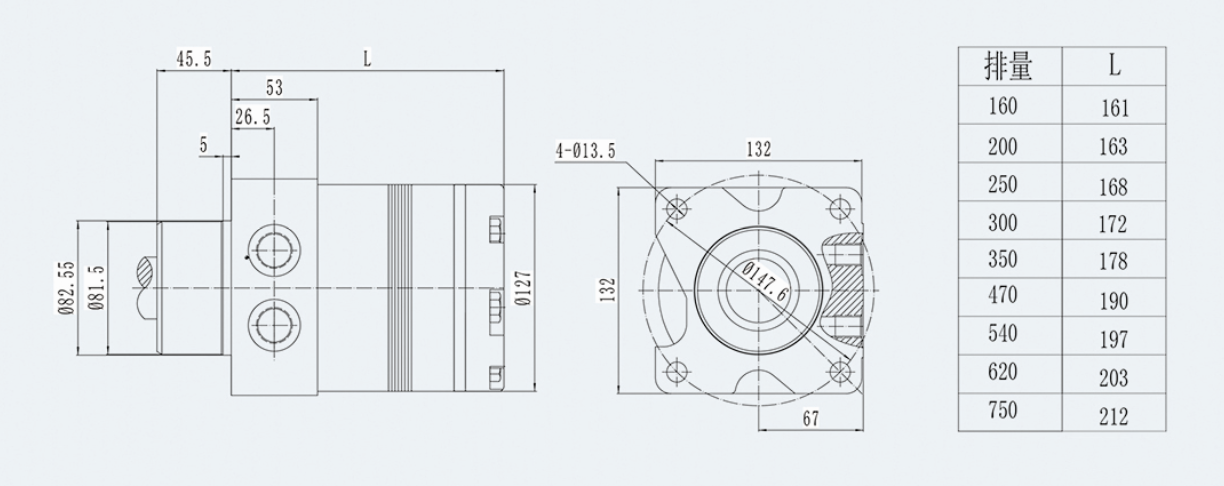

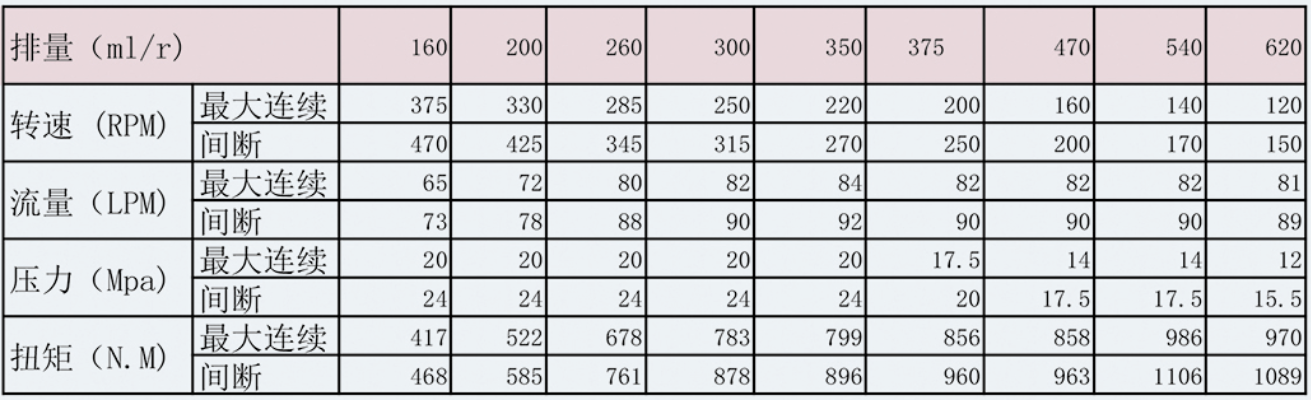

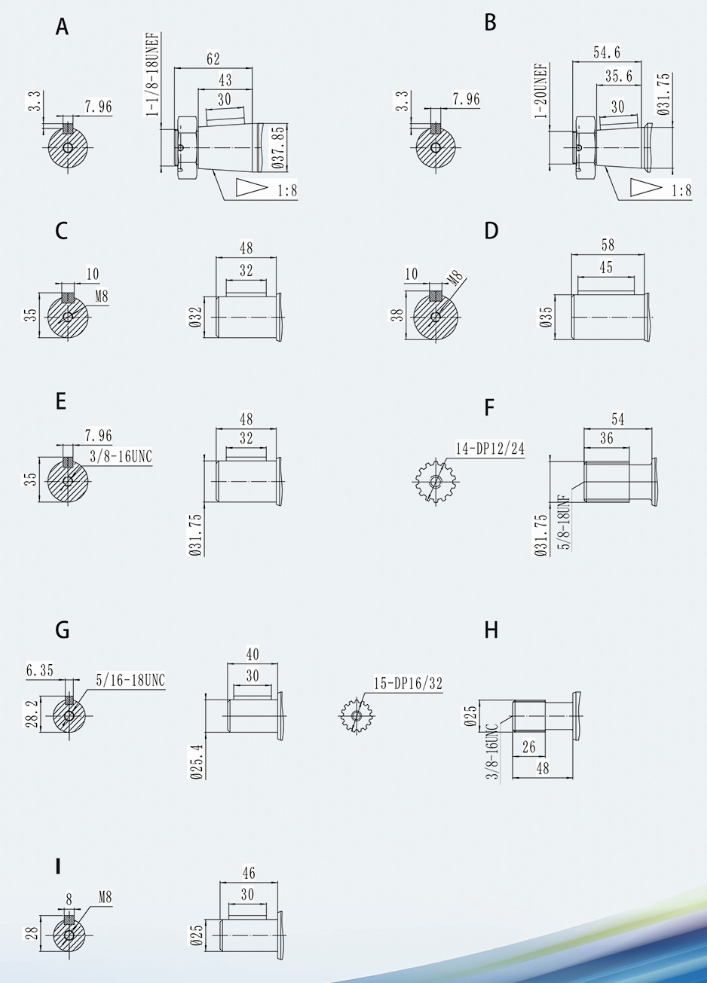

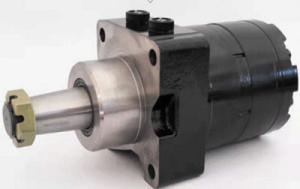

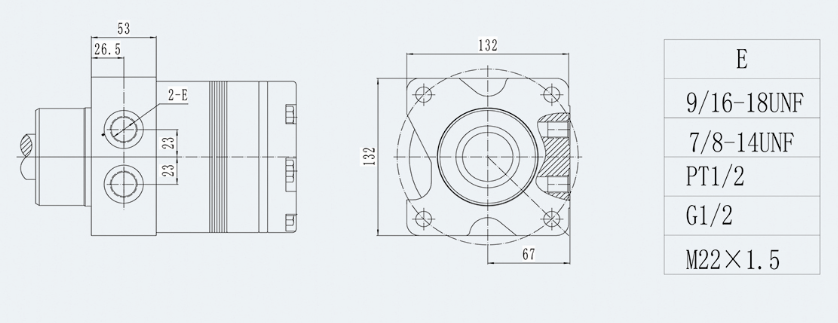

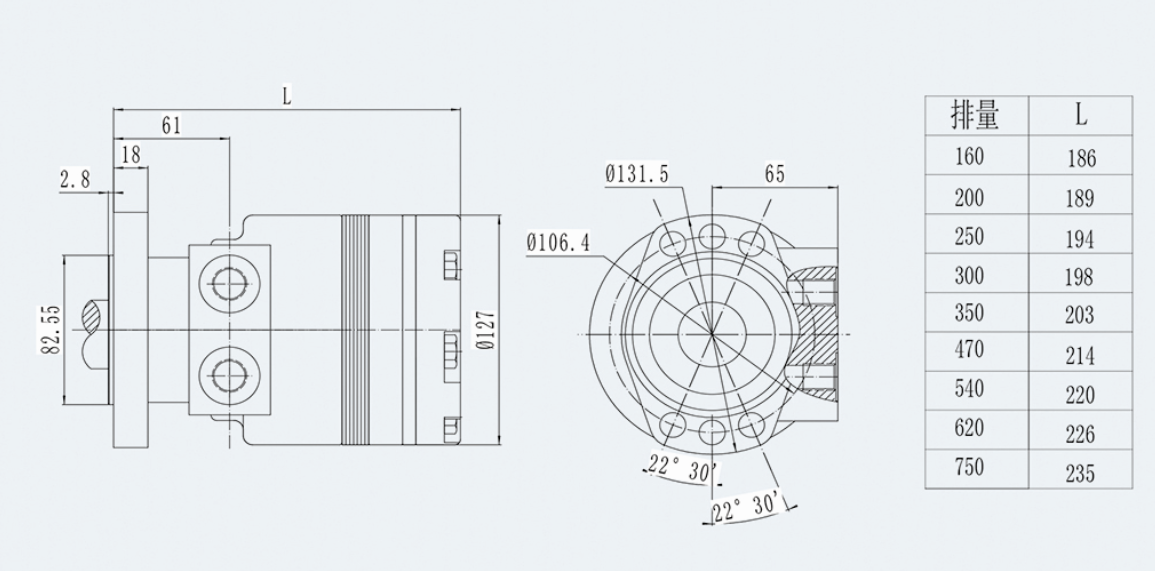

BME Series AC DC Motor Hydraulic Orbital Motor High Torque At Low Speeds Images
